2J4H83Pc Stellar 4-in-1 5GNR MIMO, Adhesive Mount Antenna designed and manufactured by 2J Antennas

2J4H83Pc Antenna

Stellar 4-in-1 4x 5GNR/4G LTE/3G/2G Cellular MIMO Adhesive Mount Antenna

Connections (4)

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Mounting	Adhesive Mount
Dimensions (mm)	198 × 127 × 15.7
Operating temperature	-40 °C to +85 °C
Certificates	IP67, IP69
Standard colors

Product added to cart

Products documents

Datasheet

Antenna and electrical specifications

Scroll down

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-13.2, ~-15.7, ~-12.6, ~-11.6
VSWR	~1.6:1, ~1.6:1, ~1.7:1, ~1.8:1
Efficiency (%)	~55.2, ~46.9, ~30.4, ~26.3
Peak Gain (dBi)	~3.1, ~4.5, ~2.0, ~0.9
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-14.6, ~-15.4, ~-15.6, ~-15.7
VSWR	~1.5:1, ~1.5:1, ~1.5:1, ~1.4:1
Efficiency (%)	~55.1, ~46.9, ~35.5, ~34.0
Peak Gain (dBi)	~3.3, ~4.1, ~3.2, ~2.9
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

connection 3

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-15.4, ~-14.3, ~-13.7, ~-13.0
VSWR	~1.5:1, ~1.6:1, ~1.7:1, ~1.7:1
Efficiency (%)	~55.3, ~44.0, ~29.7, ~27.5
Peak Gain (dBi)	~3.5, ~3.4, ~2.6, ~3.1
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

connection 4

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-15.2, ~-16.8, ~-13.9, ~-12.5
VSWR	~1.5:1, ~1.4:1, ~1.6:1, ~1.7:1
Efficiency (%)	~57.1, ~48.4, ~30.4, ~25.1
Peak Gain (dBi)	~3.4, ~4.5, ~2.5, ~1.2
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

Key Features

4-in-1 Combination Antenna

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

Ground Plane Independent

4.5 dBi 5G NR Peak Gain

High Performance

Low Profile

Small Form Factor

Customizable Cable and Connector

5GNR Antenna Bands list

Parameters	5GNR Antenna
Frequency (MHz)	617-960	1427-2690	3300-5000	5150-5925
Band (MHz)	600, 700, 850, 900	1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600	3300, 3500, 3600, 3700, 4500	5200, 5500, 5800
5GNR Bands	n5, n8 ,12, n20, n28, n71, n81, n82, n83,	n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86	n77, n78, n79
4GLTE Bands	B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85	B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76	B22, B42, B43, B48, B49, B52	B46, B47, B252, B255
3GCELL Bands	B5, B6, B8, B12, B13, B14, B19, B20, B26	B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40	B22
2GCELL Bands	710, 750, 810T, 850, 900P, 900E, 900R	1800DCS, 1900PCS
CDMACELL Bands	BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19	BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21

Antenna Description

Sleekest 4-in-1 Antenna Design on the Market, Accelerating 5GNR Performance

The low profile 4-in-1 MIMO adhesive mount antenna (2J4H83Pc) is designed for 5GNR, Sub-6GHz bands, and is fully 4G LTE backward compatible. Therefore, this ultra-wideband antenna operates within 617 – 5925 MHz frequencies. This high-performance antenna offers superior connectivity, accuracy, and reliability thanks to the powerful 5G technology, allowing devices to remain online while moving through different coverage areas. This antenna is available in various combinations to meet different application needs.

Suggested applications include:

Wireless broadband communications
Cellular and Mobile Data and Voice
Data Terminals, Base Stations and Routers
Critical Communications and Public Safety

Law Enforcement
Medical Transportation
Fire Departments

Industrial Machinery
Automotive and Transportation
Telematics
Utilities
Mobile Modems

4 X Cellular 5GNR/4G LTE/3G/2G MIMO

Cable 1-4 are designed for cellular and mobile devices that operate within 5GNR, FirstNet, CBRS, 4G LTE, CAT-X, CAT-MX, CAT-NBX, 3G, 2G, Cellular, HSPA+, UMTS, WCDMA, CDMA, GSM, GPRS, EDGE, EV-DO standards. This antenna outperforms its competition with accelerated 5GNR technology and edge computing workloads. Tuned with high gain and efficiency within 617 – 5925 MHz frequency bands while maintaining full range 360-degree signal strength and quality.

Installation / Environmental

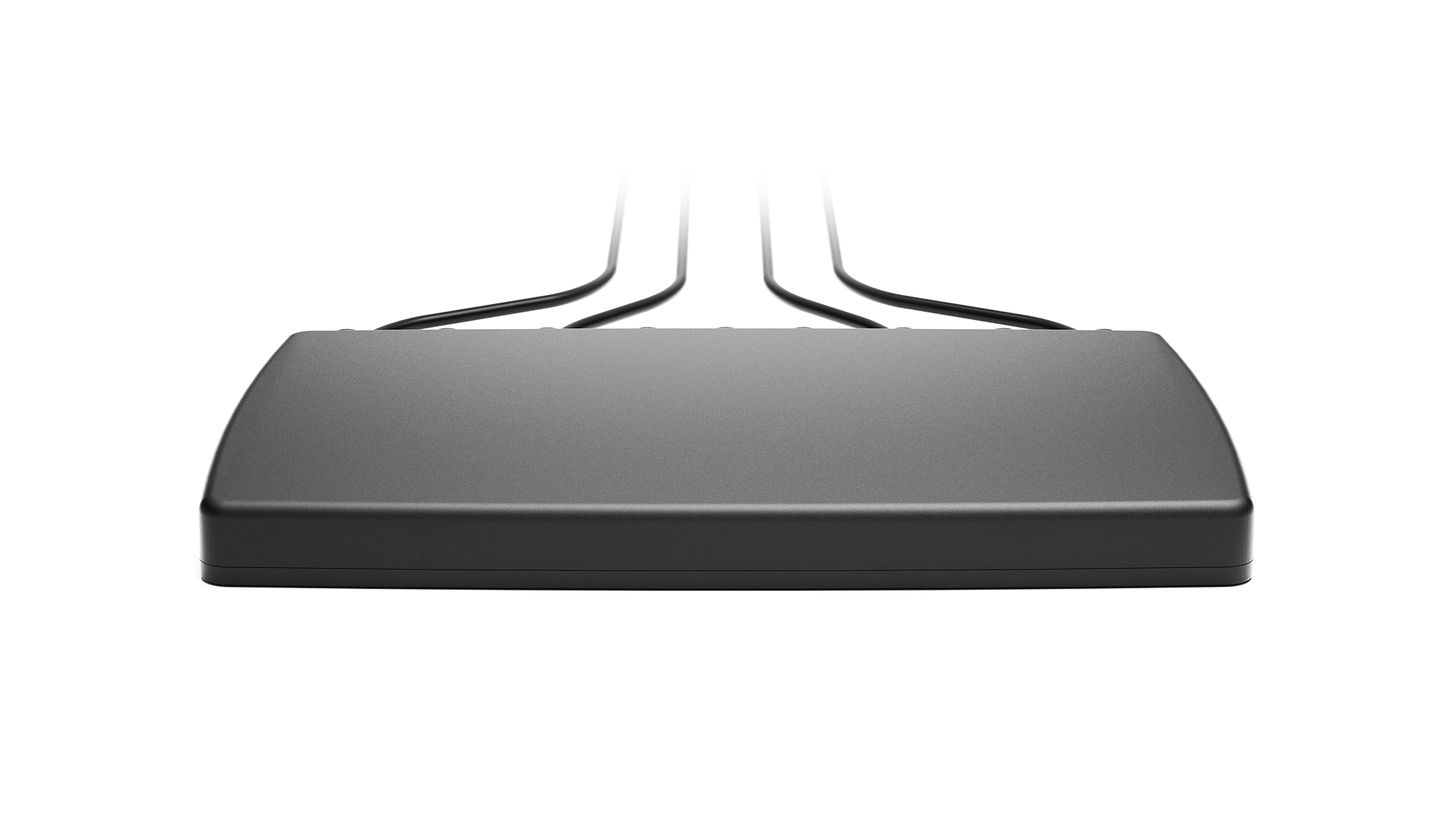

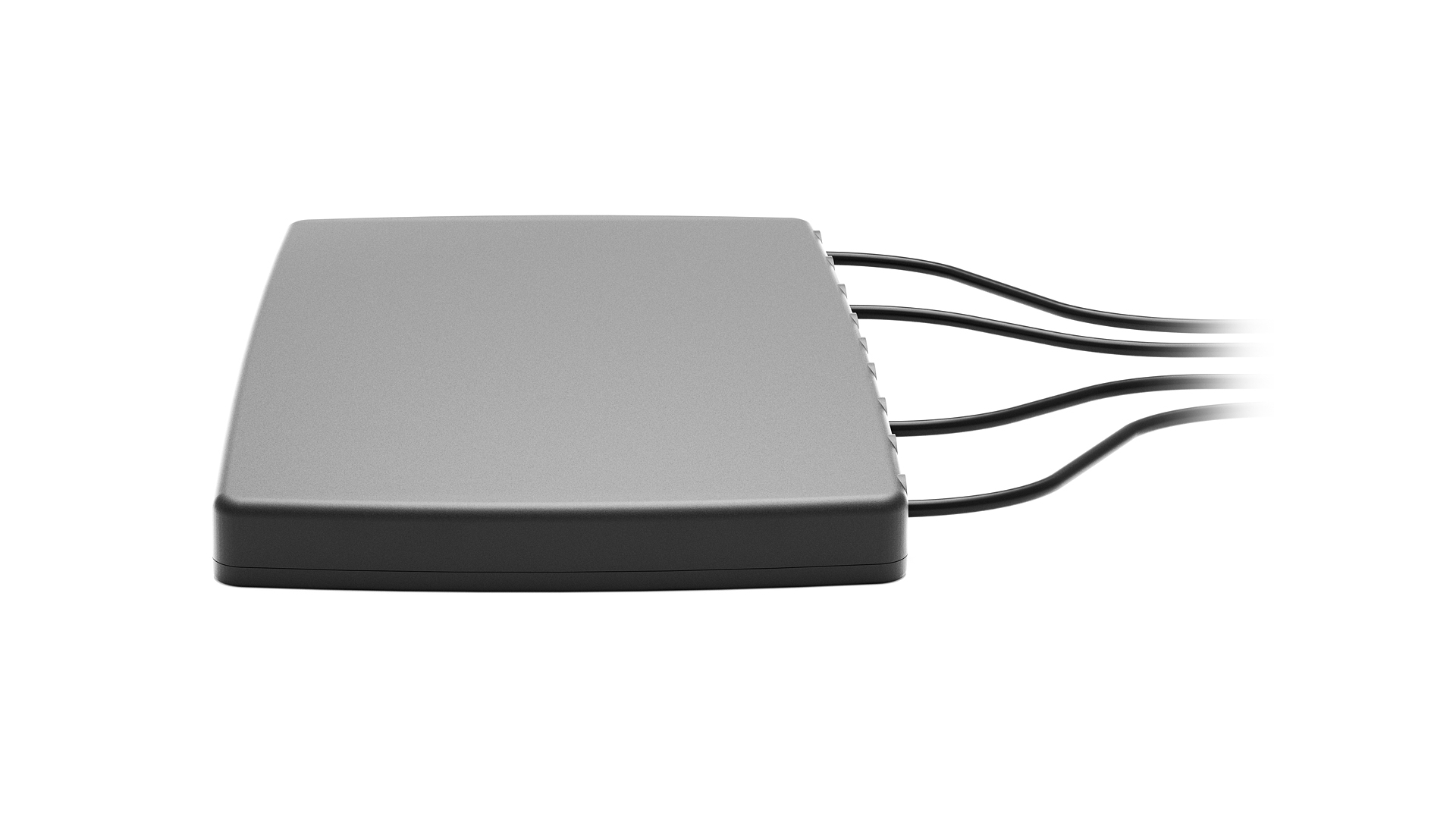

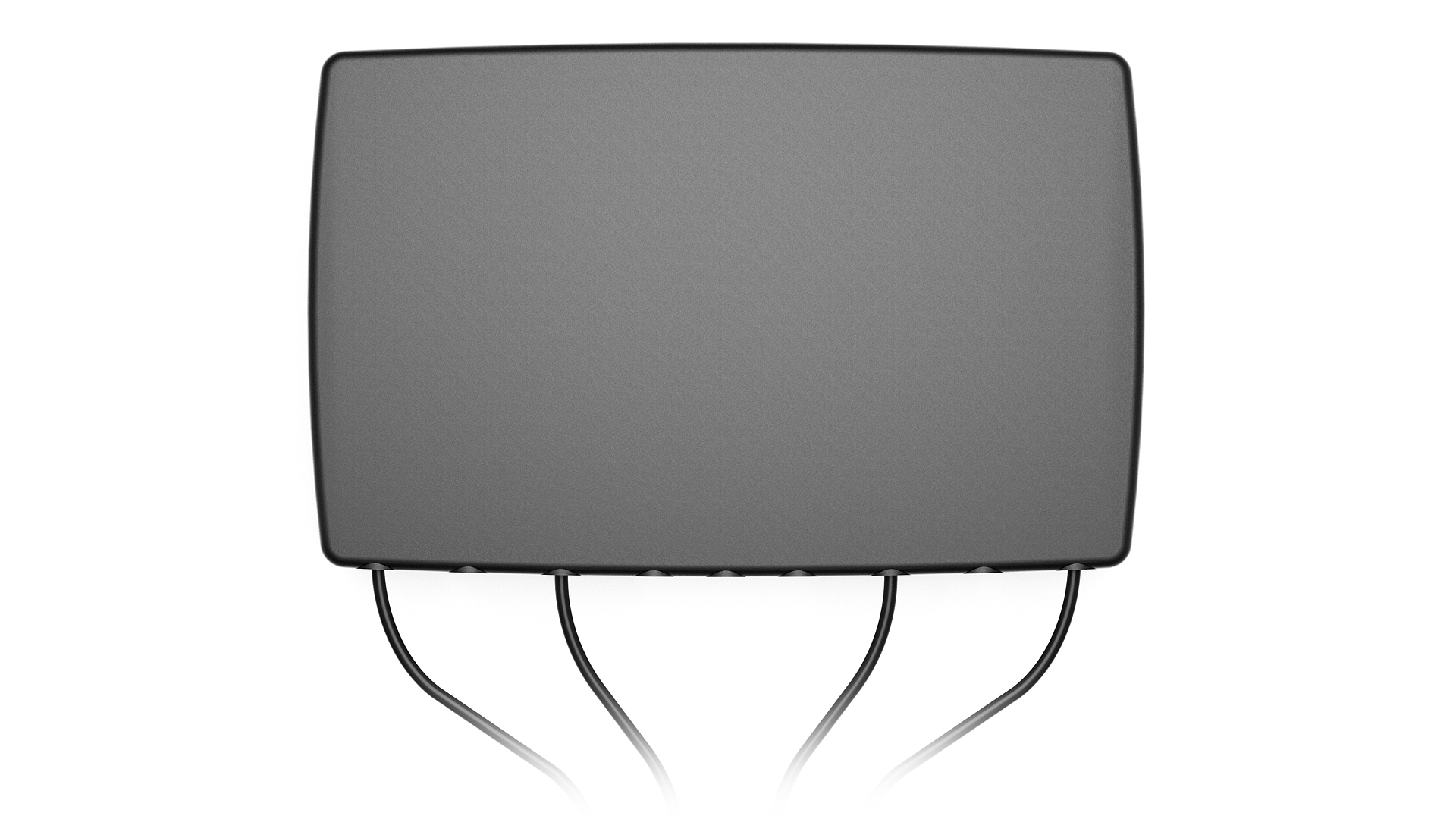

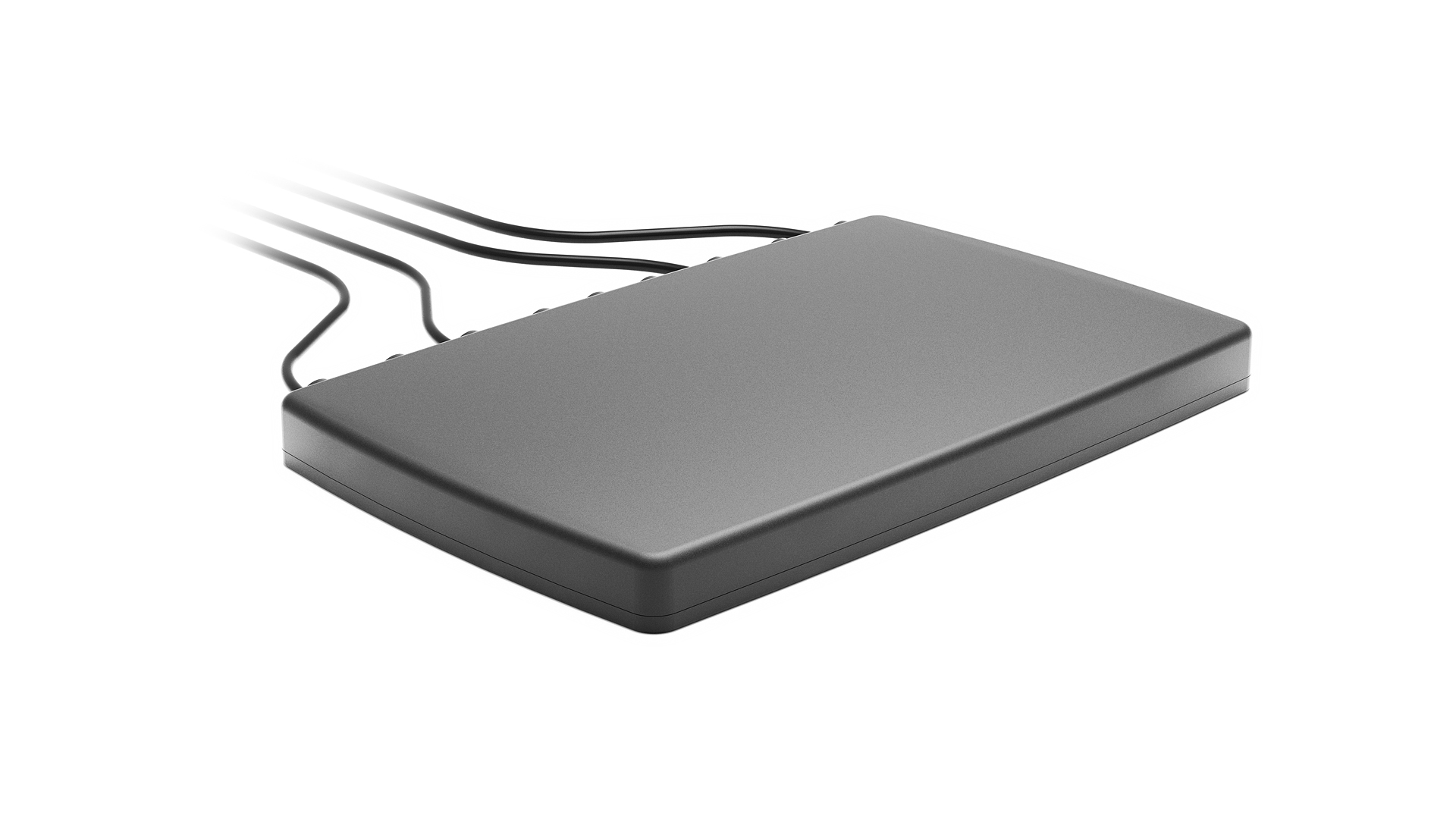

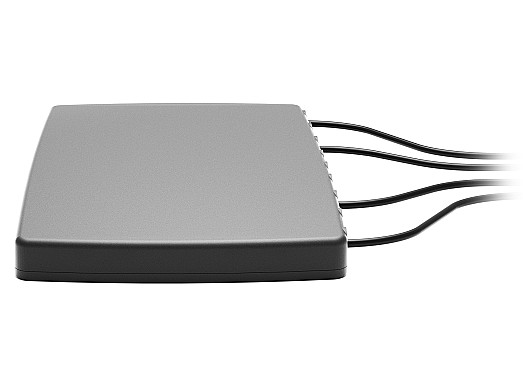

This ground plane independent antenna can be installed with an easy peel-and-stick adhesive to mount on any non-metallic surface, making it ideal for temporary installations. The low-profile housing measures only 198 x 127 x 15.7mm making this antenna ultra-compact and versatile. Manufactured with ASA UV stable material and full IP67/IP69 rating offer durability and the highest protection against water and moisture. This antenna is available in black.

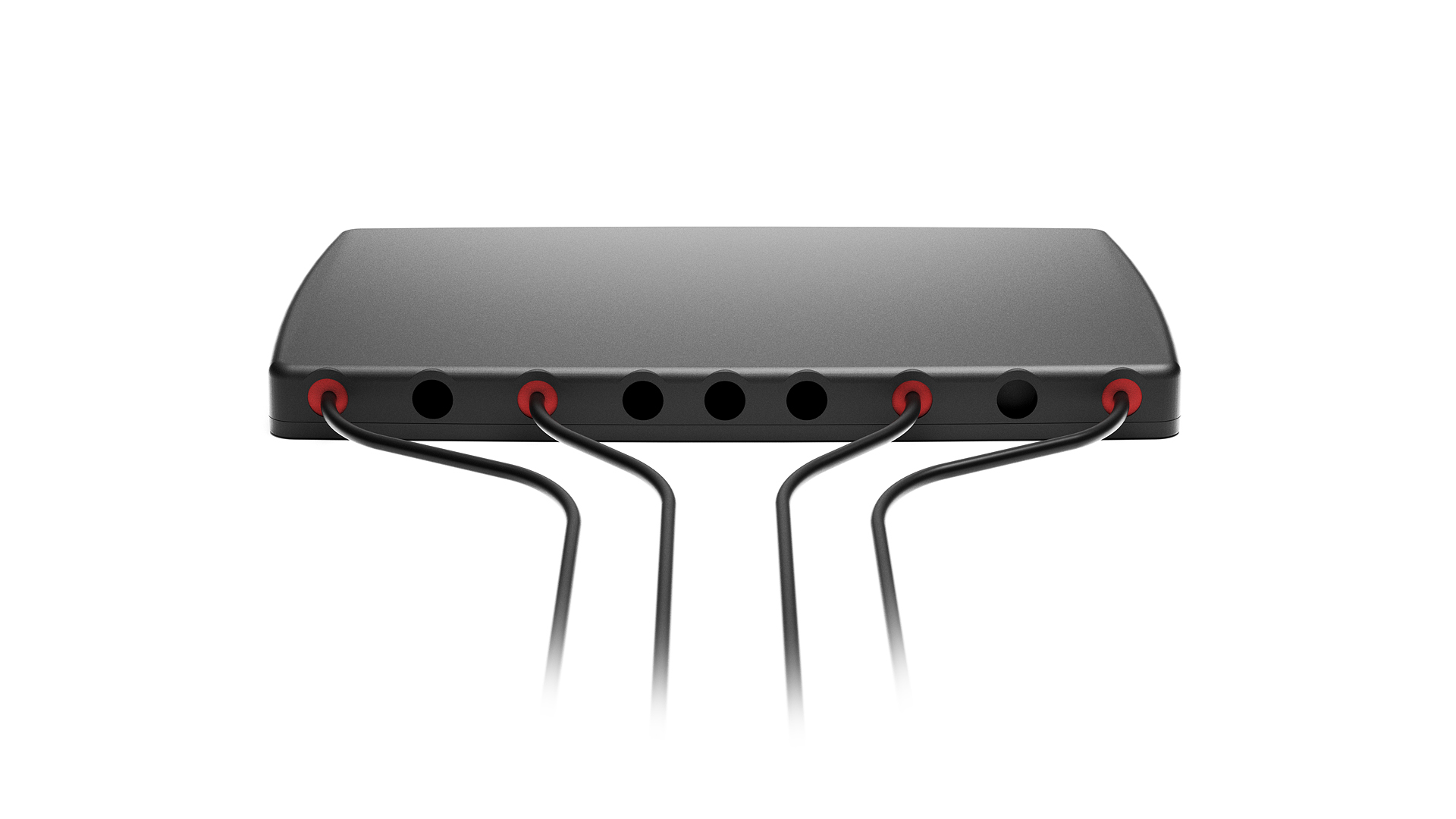

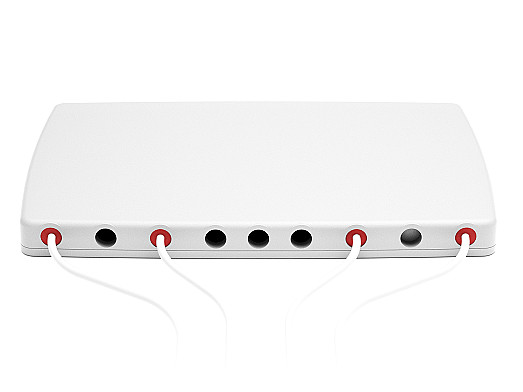

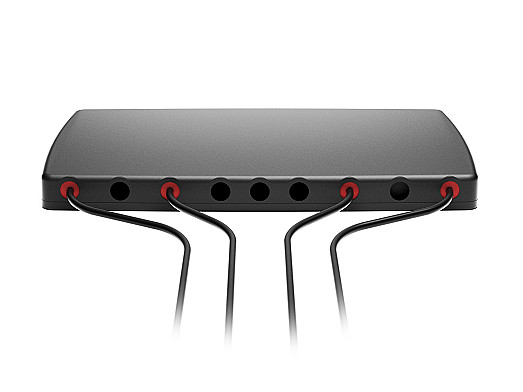

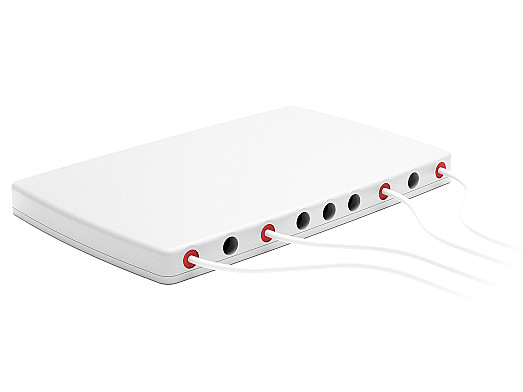

2J4H83Pc connections are standard SMA-Male and come with 300cm long D302 cable. We offer various alternative connectors and cables to meet any customization needs. Please get in touch with our highly skilled engineers for assistance in antenna selection or customization requirements.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Applications

Mobile Networks Entertainment and Multimedia IoT - Internet of Things Smart Home Logistics and Shipping Smart Cities Industrial IoT & Monitoring Smart Farming Fleet Management Medical and Healthcare Autonomous Driving Drone Operation Security and Surveillance Gaming and Virtual Reality Cellular Networks Mission Critical Communications Transportation GIS - Geographic Information System Cartographic Hazard Mitigation Machine Control Automation Agriculture Construction Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Wearables Asset Tracking and Security Location Based Services Civil Applications Road Applications Rail Applications Maritime Applications Autonomous Applications Mobile Applications Automotive Telecommunication Data Processing Broadband Communications Remote Monitoring and Control Smart Lighting Government & Public Safety Telemetry / Telematics Video Streaming Private Cellular Networks Digital Signage Routers, Gateways & Data Terminals First Responder Fleets Fire Departments C-V2X - Cellular Vehicle to Everything MIMO Device Connectivity Wireless Security System Energy Monitoring Smart Metering Air Quality and Pollution Monitoring Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Building Control Manufacturing Smart Grid Electricity Metering & Management Resources Management Utilities
