Condor 5GNR MIMO 2.4/5.0 GHz ISM and GPS/GLONASS Adhesive Mount

2J4A86PGFa   “The Condor Series”

The Most Compact 5GNR MIMO Antenna with WiFi and GNSS Capabilities on the Market

2J Antennas is pleased to introduce the next-generation combination antenna: “The Condor Series” 5GNR MIMO 2.4/5.0 GHz ISM MIMO and GNSS Adhesive Mount Antenna (2J4A86PGFa). This antenna is the most compact antenna on the market and the most versatile in this product group.

Worldwide solution

It offers a 5-in-1 cable selection in the same enclosure covering a wide bandwidth (617 – 5925 MHz). The 2J4A86PGFa supports 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G, 2G, WiFi, BT, ZigBee, ISM, GPS, QZSS, Galileo and GLONASS standards making it the most reliable antenna on the market for the following suggested applications:

Cables 1 and 2: 5GNR

Cables 1 and 2 are designed for 5GNR devices that operate within worldwide 4G Bands including 3G and 2G within the 617 – 5925 MHz frequencies. The 5GNR technology introduces millimeter-wave (mmWave) frequency for new generation LTE bands making it an ideal solution for MIMO technology.  Both cables are designed with omni-directional radiation pattern and linear polarization for maximum 360-degree signal strength.

Cables 3: 2.4/5.0 GHz

Cables 3 and 4 are dedicated to wireless-enabled device solutions operating within WiFi, BT,  ZigBee and ISM standards. Both cables are designed with omni-directional radiation pattern for maximum radiation efficiencies delivering unmatched performance and making it the ideal solution for high-capacity network communications and HD video streaming.

Cables 5: GNSS

Cable 5 is designed for precision navigational applications that operate within GPS, QZSS, Galileo and GLONASS standards. Designed with a hemispherical radiation pattern and right-hand circular polarization allows cable 5 to radiate on all planes and maximize connectivity by avoiding conflict with propagating signals, penetrating obstructions, reducing dead spots, boosting throughput and improving resistance to signal degradation caused by inclement weather conditions. Cable 5 can maintain an active gain of 28 dB @ 2.7 V and a noise figure parameter of 1.5. Cable 5 is designed with electrostatic discharge (ESD) protection for up to 2KV and a SAW pre-filter blocking inadequate frequencies (within 1575-1606 MHz) from passing from the antenna to the receiver.

All our products have been tested by our expert engineers and measured in our certified CTIA 3D Anechoic Chamber. Please contact our experienced team for assistance with antenna selection and recommendations.

Installation / Environmental

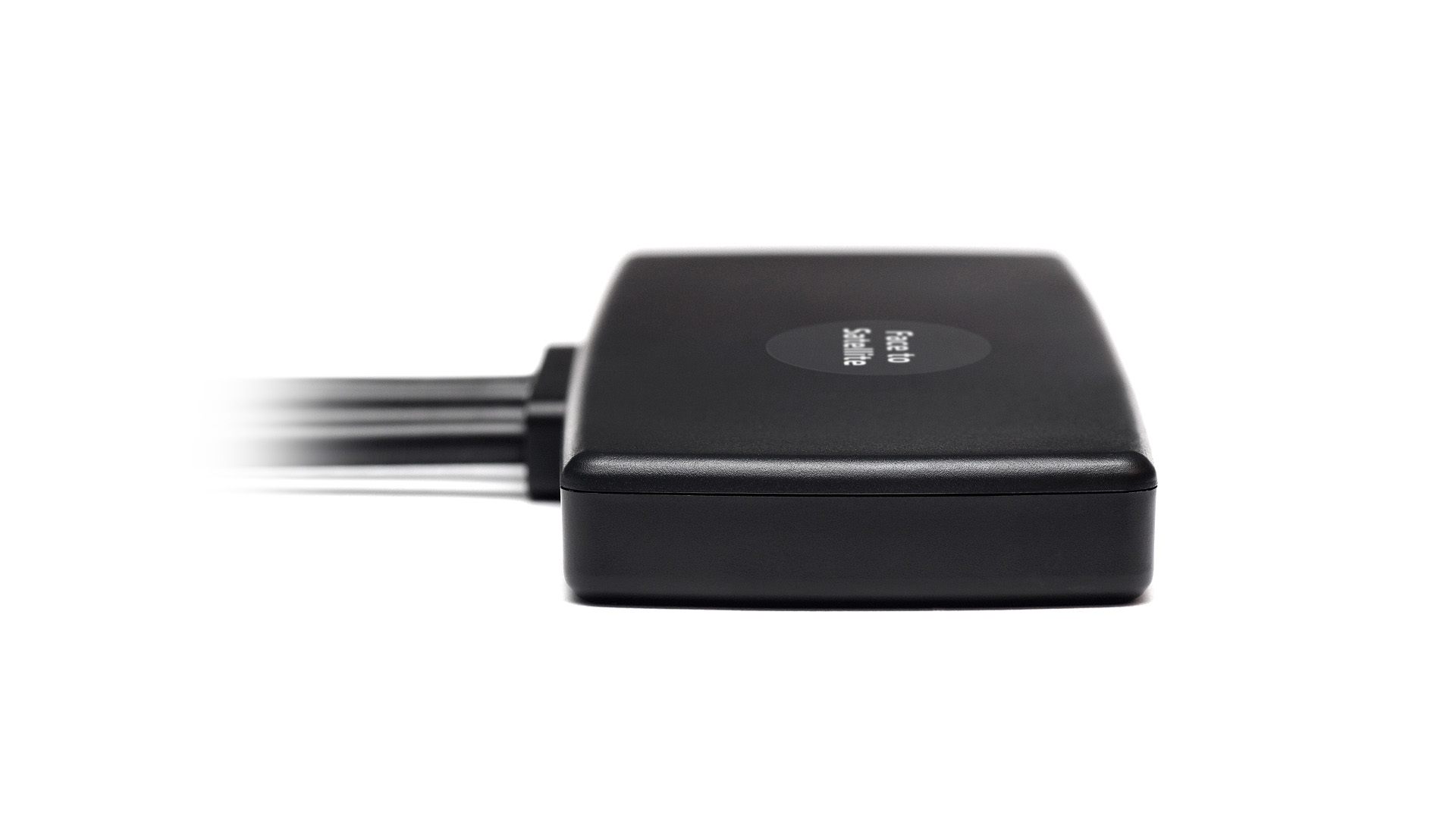

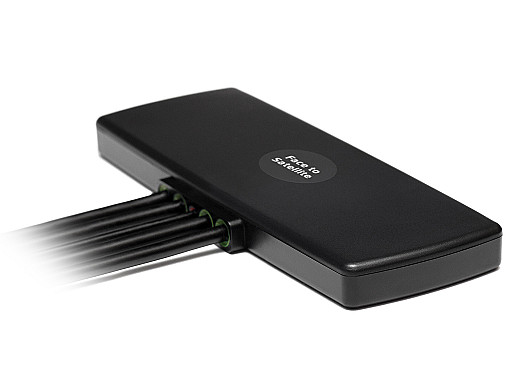

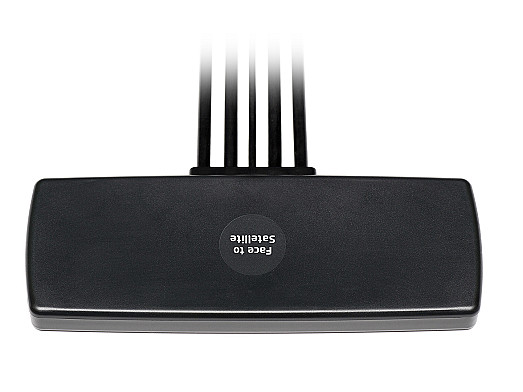

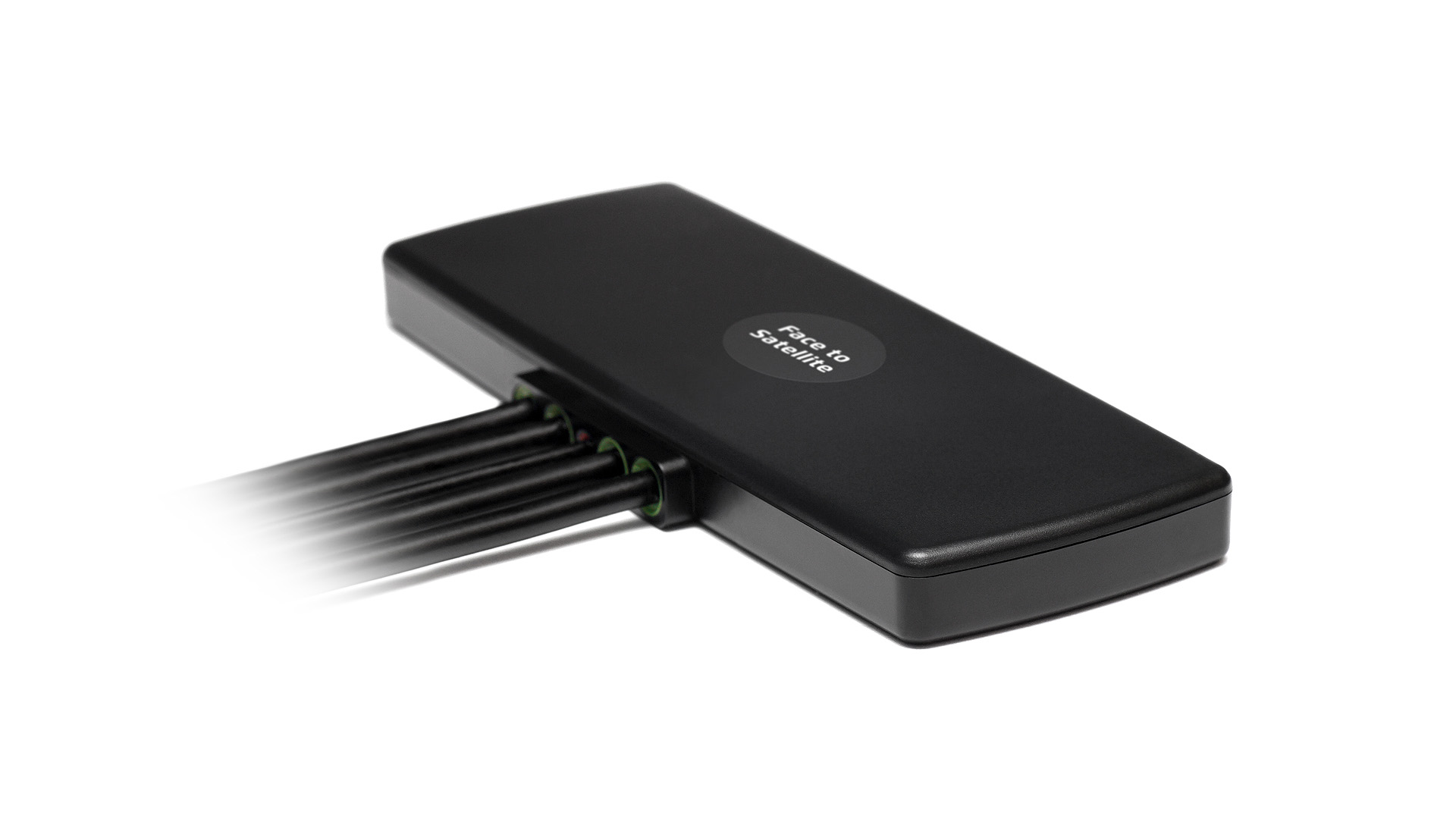

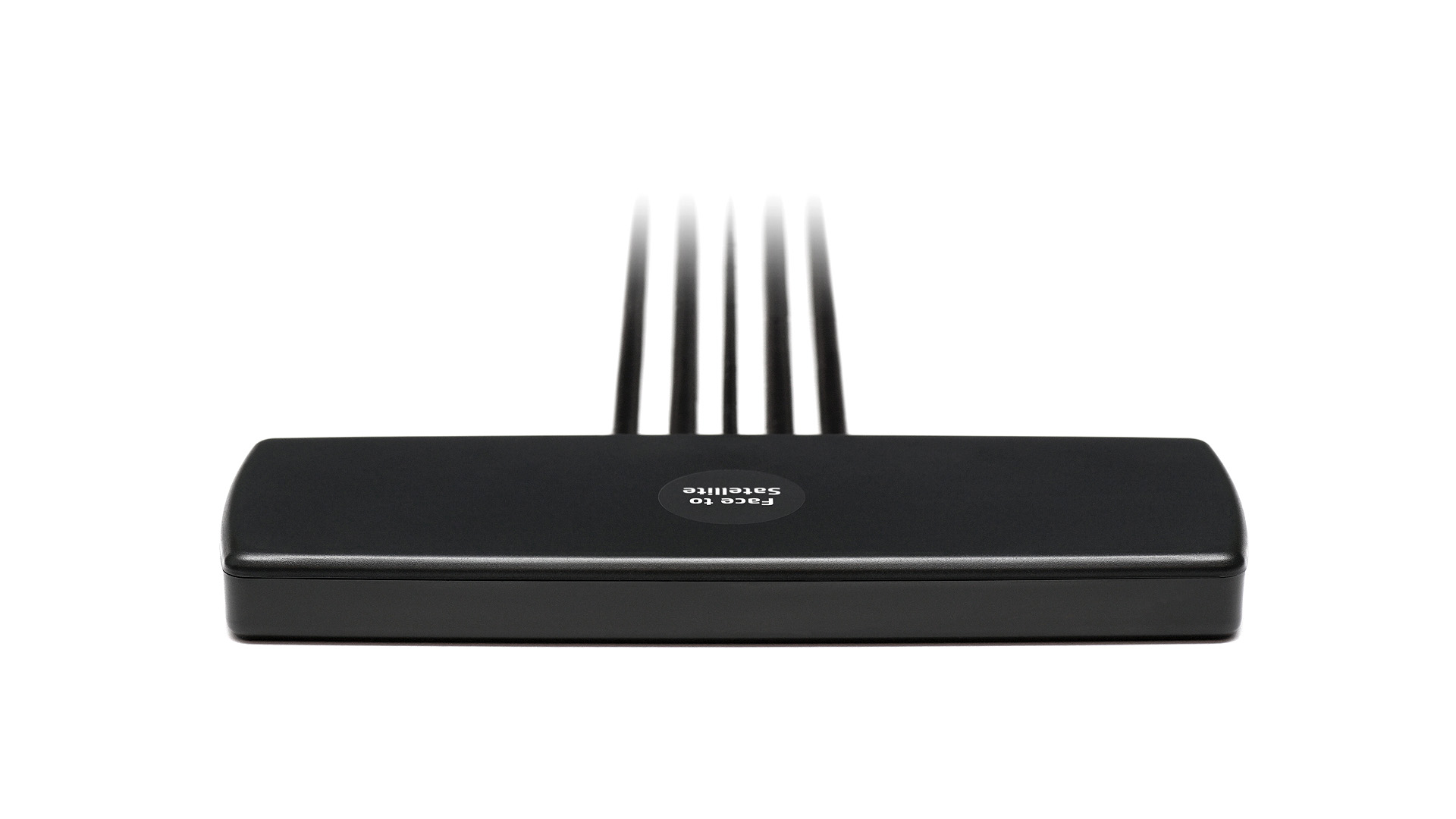

With a compact bar shape housing (58.7 x 157.6 x 14.4 mm) and a separate double-adhesive pad, the 2J4A86PGFa can be securely and safely installed on any type of surfaces such as windshields, dashboards, plastics, etc.

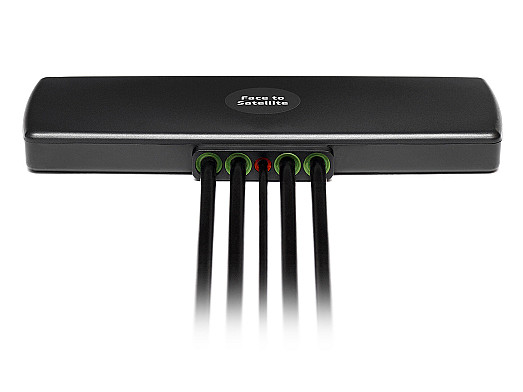

Manufactured with high-quality ASA UV stable material, the IP67/ IP69K compliant design provides maximum protection in extreme outdoor applications while maintaining exceptional performance. Cable 1-4 come with standard SMA-Male connector with a 300 cm long LL195 (Low Loss coaxial) cable and cable 5 comes with standard SMA-Male connector and 300 cm long LL100 (Low Loss coaxial) cable. Both cables are a popular choice for good return loss, insertion loss and amplitude stability.  We offer a wide range of alternative connectors and cables for any customization needs and our highly skilled team is available to guide our customers through any special requirements. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
