2J4983Pa 2-in-1 5GNR MIMO Adhesive Mount Antenna

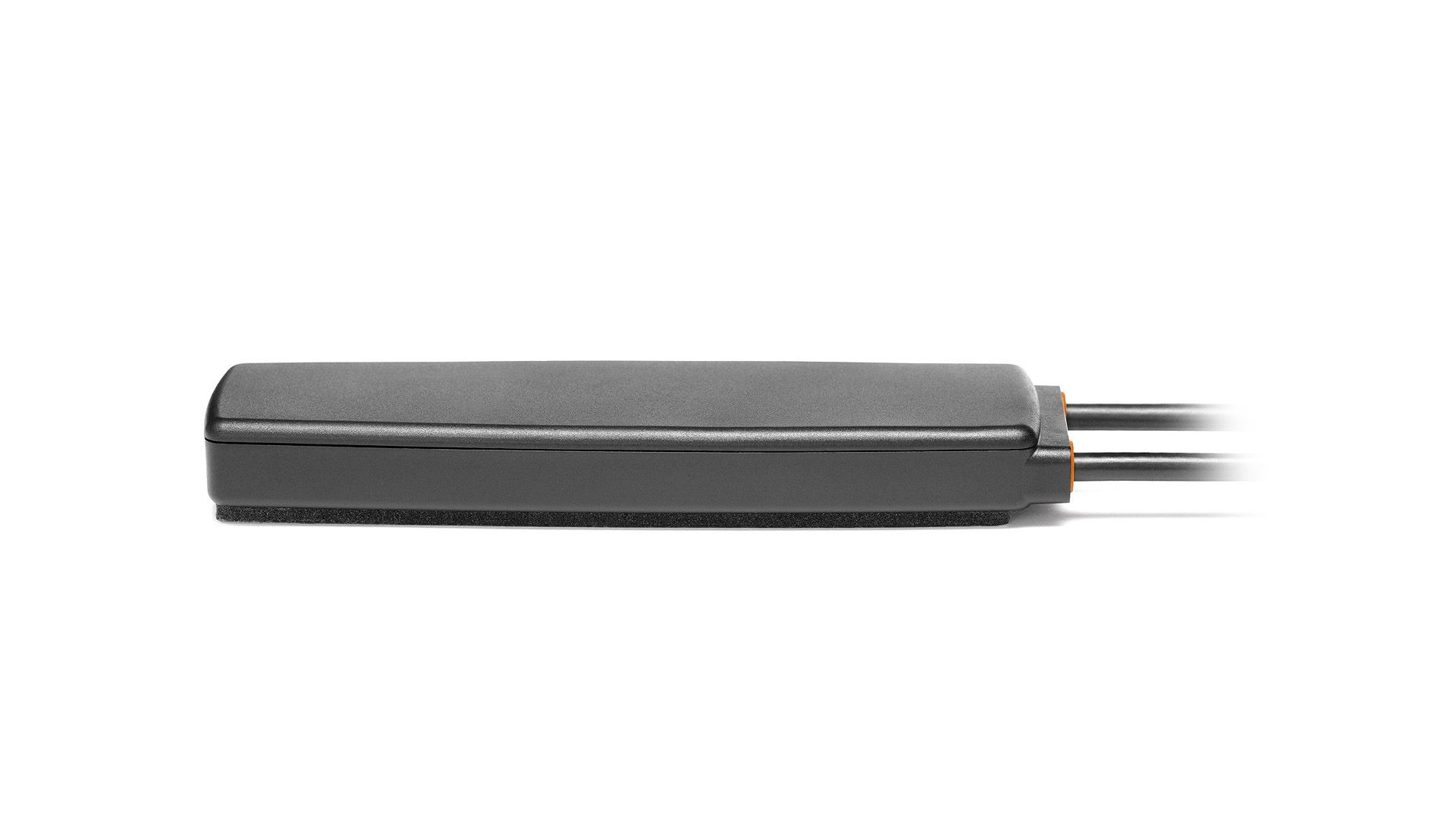

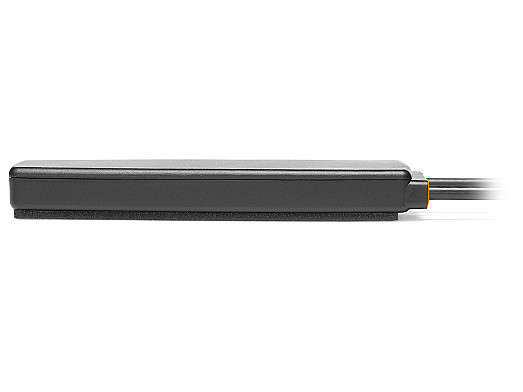

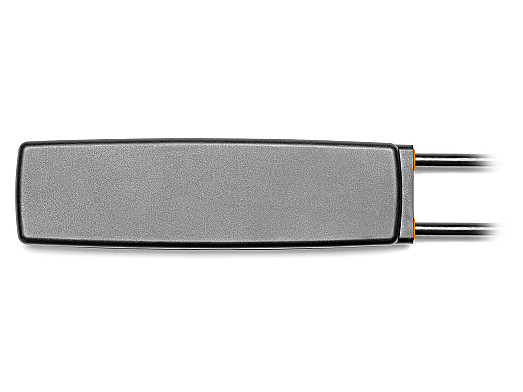

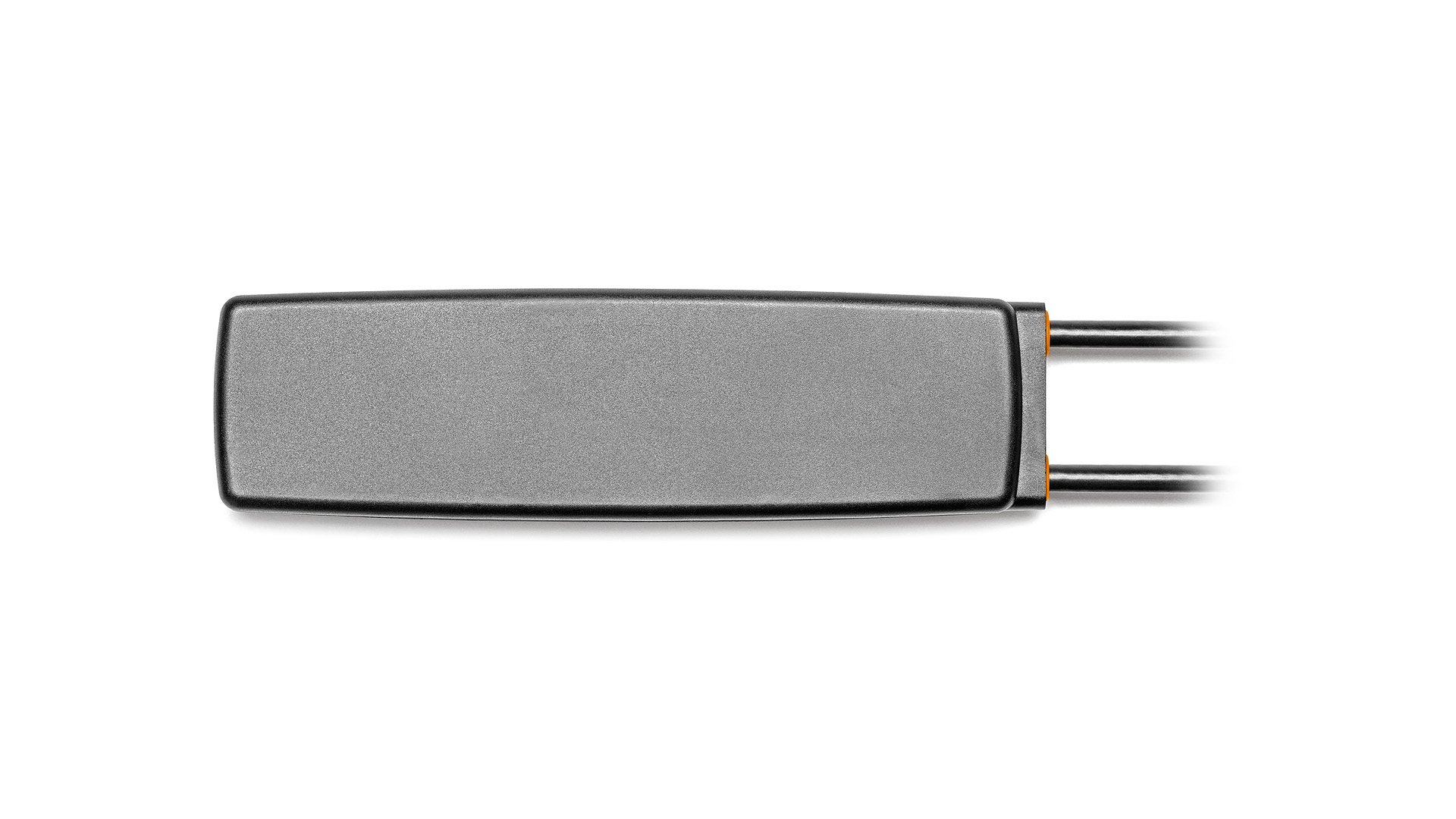

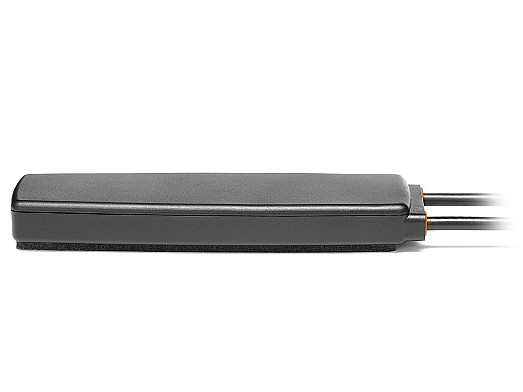

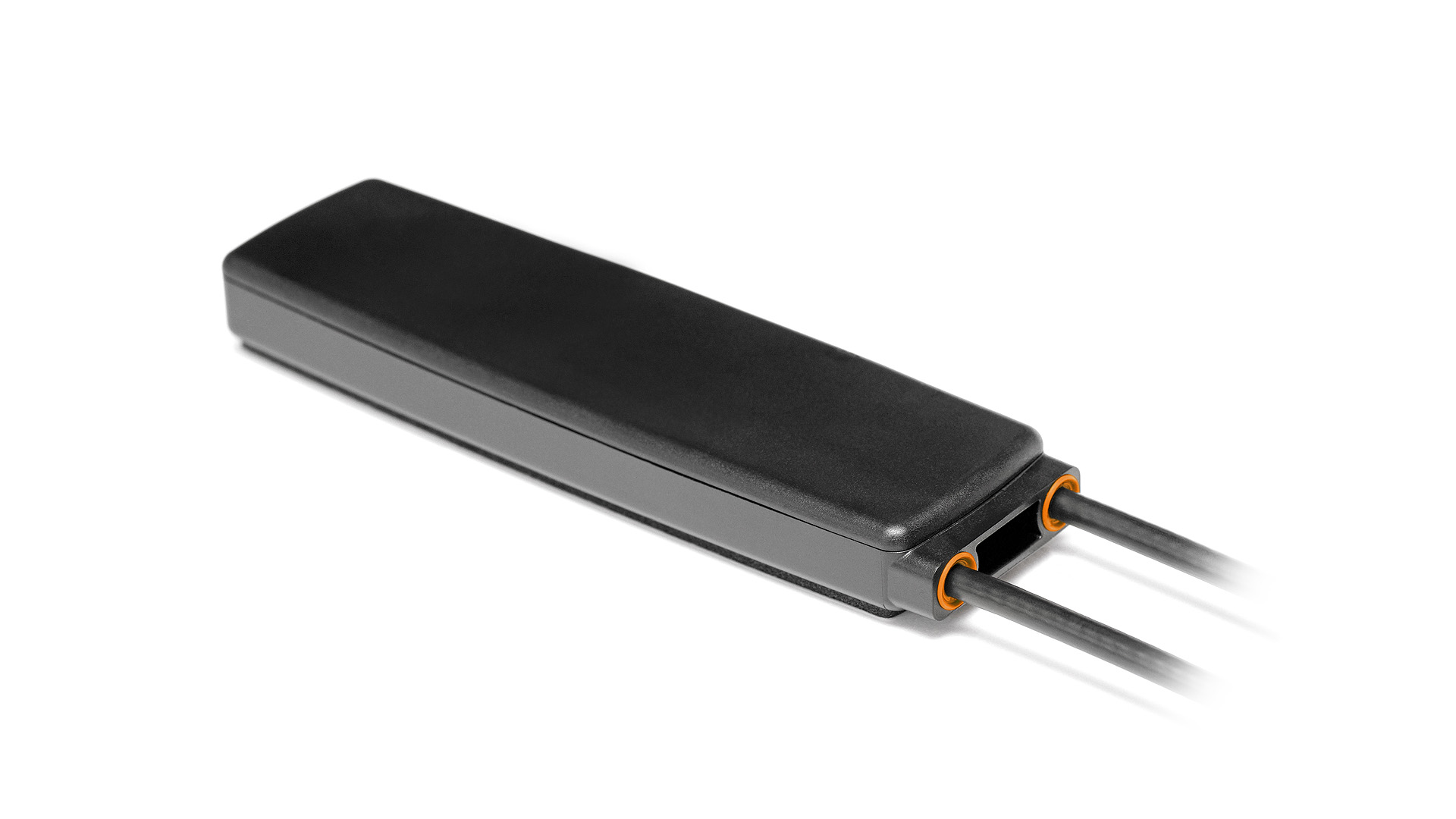

Eagle 2-in-1 5GNR MIMO UWB Adhesive Mount Antenna

Connections (2)

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Mounting	Adhesive Mount
Dimensions (mm)	150.5 x 42 x 15.3
Operating temperature	-40 °C to +85 °C
Certificates	IP67, IP69
Standard colors

Mounting

Adhesive Mount

Dimensions (mm)

150.5 x 42 x 15.3

Operating temperature

-40 °C to +85 °C

Certificates

IP67, IP69

Standard colors

Product added to cart

Products documents

Antenna and electrical specifications

Scroll down

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-8.3, ~-7.3, ~-8.5, ~-10.7
VSWR	~2.3:1, ~3.0:1, ~2.3:1, ~2.0:1
Efficiency (%)	~41.1, ~41.6, ~43.7, ~30.3
Peak Gain (dBi)	~2.5, ~3.8, ~4.2, ~2.8
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-9.6, ~-8.2, ~-6.9, ~-7.0
VSWR	~2.2:1, ~2.6:1, ~3.3:1, ~2.8:1
Efficiency (%)	~45.1, ~52.0, ~40.1, ~33.5
Peak Gain (dBi)	~3.2, ~5.6, ~5.1, ~4.7
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

Key Features

2-in-1 Combination Antenna

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

Ground Plane Independent

5.6 dBi 5G NR Peak Gain

High Performance

Low Profile

Customizable Cable and Connector

5GNR Antenna Bands list

Parameters	5GNR Antenna
Frequency (MHz)	617-960	1427-2690	3300-5000	5150-5925
Band (MHz)	600, 700, 850, 900	1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600	3300, 3500, 3600, 3700, 4500	5200, 5500, 5800
5GNR Bands	n5, n8 ,12, n20, n28, n71, n81, n82, n83,	n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86	n77, n78, n79
4GLTE Bands	B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85	B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76	B22, B42, B43, B48, B49, B52	B46, B47, B252, B255
3GCELL Bands	B5, B6, B8, B12, B13, B14, B19, B20, B26	B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40	B22
2GCELL Bands	710, 750, 810T, 850, 900P, 900E, 900R	1800DCS, 1900PCS
CDMACELL Bands	BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19	BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21

Antenna Description

Ultra Wideband, Futureproof 5GNR Antenna Solution With Highest Reliability For Global Mobility Connectivity

2J4983Pa is an ultra-compact, high-performance adhesive mount external antenna. This 2-in-1 configuration solution combines ultra wideband multi-application device functionality that caters to 2× 5GNR, 4G LTE, 3G, 2G, in one antenna. Backward compatible, this antenna operates within 617-5925 MHz Sub 6GHz bands. It brings reliable, constant global connectivity with the highest precision ideal for tracking/mapping devices, automotive navigation, machine-to-machine connectivity and global video, voice and data communications.

Cables 1 and 2 are dedicated to 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards while maintaining superior mobile connectivity within 617-960, 1427-2690, 3300-5000 and 5150-5925 MHz frequencies. With an omni-directional radiation pattern and linear polarization, the 2J4984PGFa offers peak gains of up to ~5.6 dBi while maintaining a stable efficiency of up to 52.0%. This antenna is designed to improve uninterrupted connectivity, better signal quality, and reliability.

Suggested applications include:

Remote Monitoring
Critical Communications
Gateways and Routers
Smart Cities
Electrical and Environmental Monitoring
RFID Asset Tracking
HD Video over LTE
First Responder and Emergency Services

Installation / Environmental

This waterproof antenna is manufactured with high-quality ASA material and is IP67/ IP69 certified. With an overall dimension of only 150.5 x 42 x 15.3 mm, this ground plane independent antenna features a high-grade adhesive mounting that assists in easy installation. Both Cable 1 and Cable 2 come with a standard SMA-Male connector and 300 cm long LL195 (Low Loss coaxial) cable known for good return loss, insertion loss and amplitude stability. All connectors and cables are fully customizable. This antenna is manufactured without any hazardous material and is fully REACH and RoHS compliant.

Eagle 2-in-1 5GNR MIMO UWB Adhesive Mount Antenna

Antenna and electrical specifications

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Key Features

5GNR Antenna Bands list

Antenna Description

Applications
