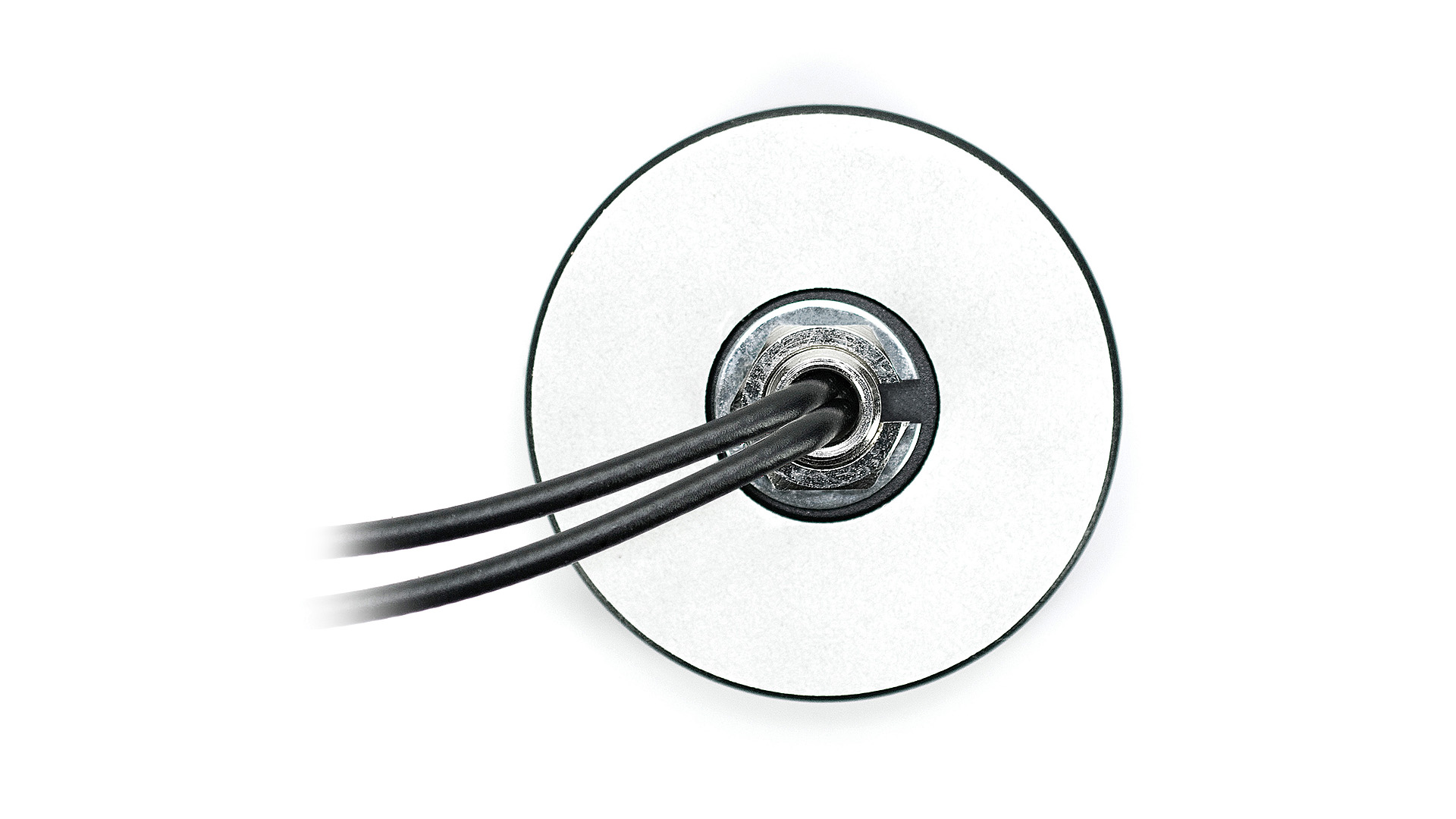

Antenna and electrical specifications
connection 1
CELLULAR
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | ~1.9:1, ~1.7:1 |
| Efficiency (%) | ~20.6, ~20.5 |
| Peak Gain (dBi) | ~-0.3, ~-2.0 |
| 50 | |
| Polarisation | Linear |
| Max. Input Power (W) | 100 |
connection 2
GPS/GLONASS
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1606 |
| Impedance (Ohm) | 50 |
| Active Gain (dB) | 28 dB @ 2.7 V |
| Saw Filter Type | Pre-Filter |
| Voltage (V) | 1.5 - 3.6 |
| Current (mA) | 9 @ 2.7 V |
| Out of Band Rejection (dB) | ~43 |
| ESD Protection (kV) | 6 |
