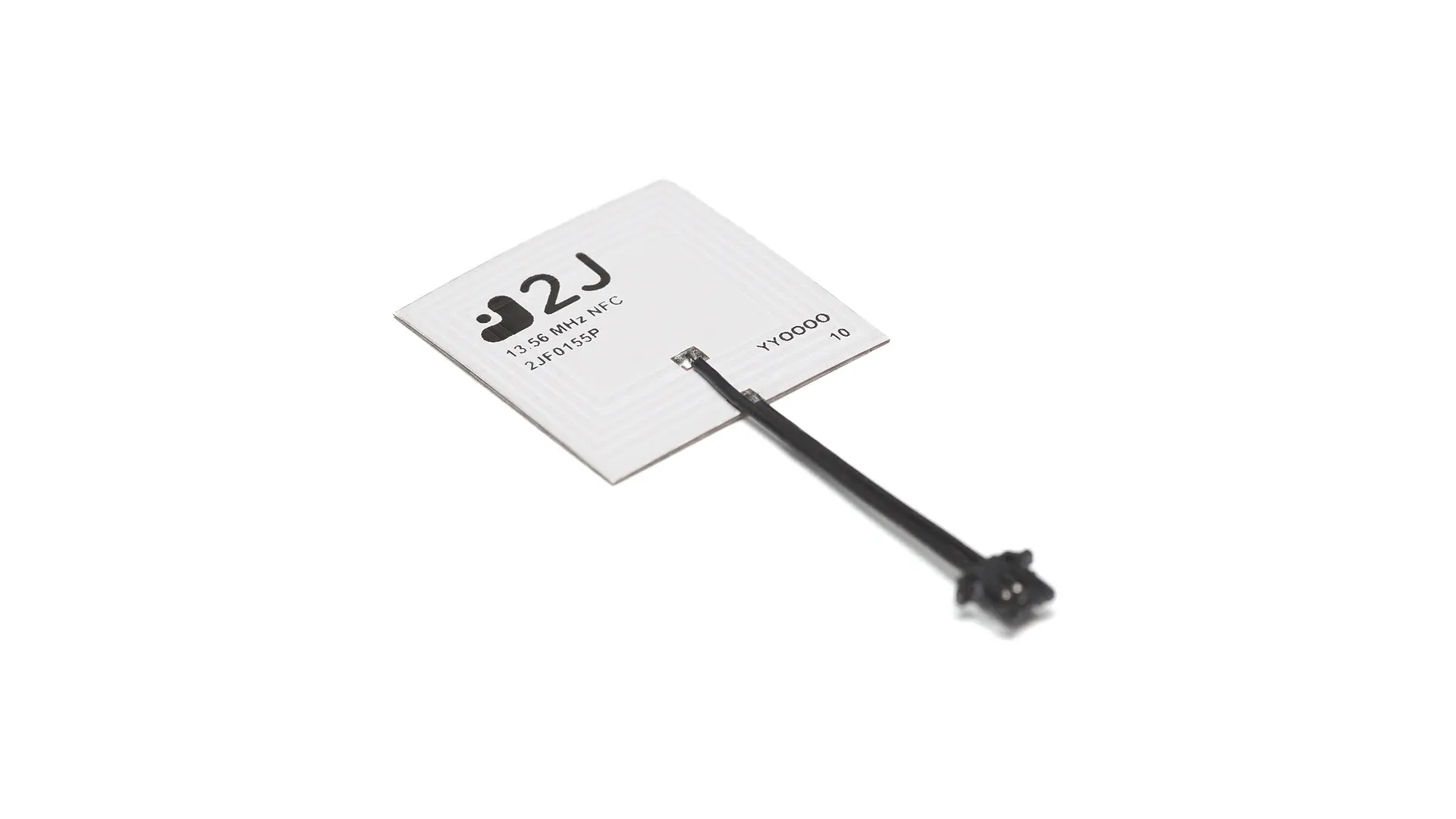

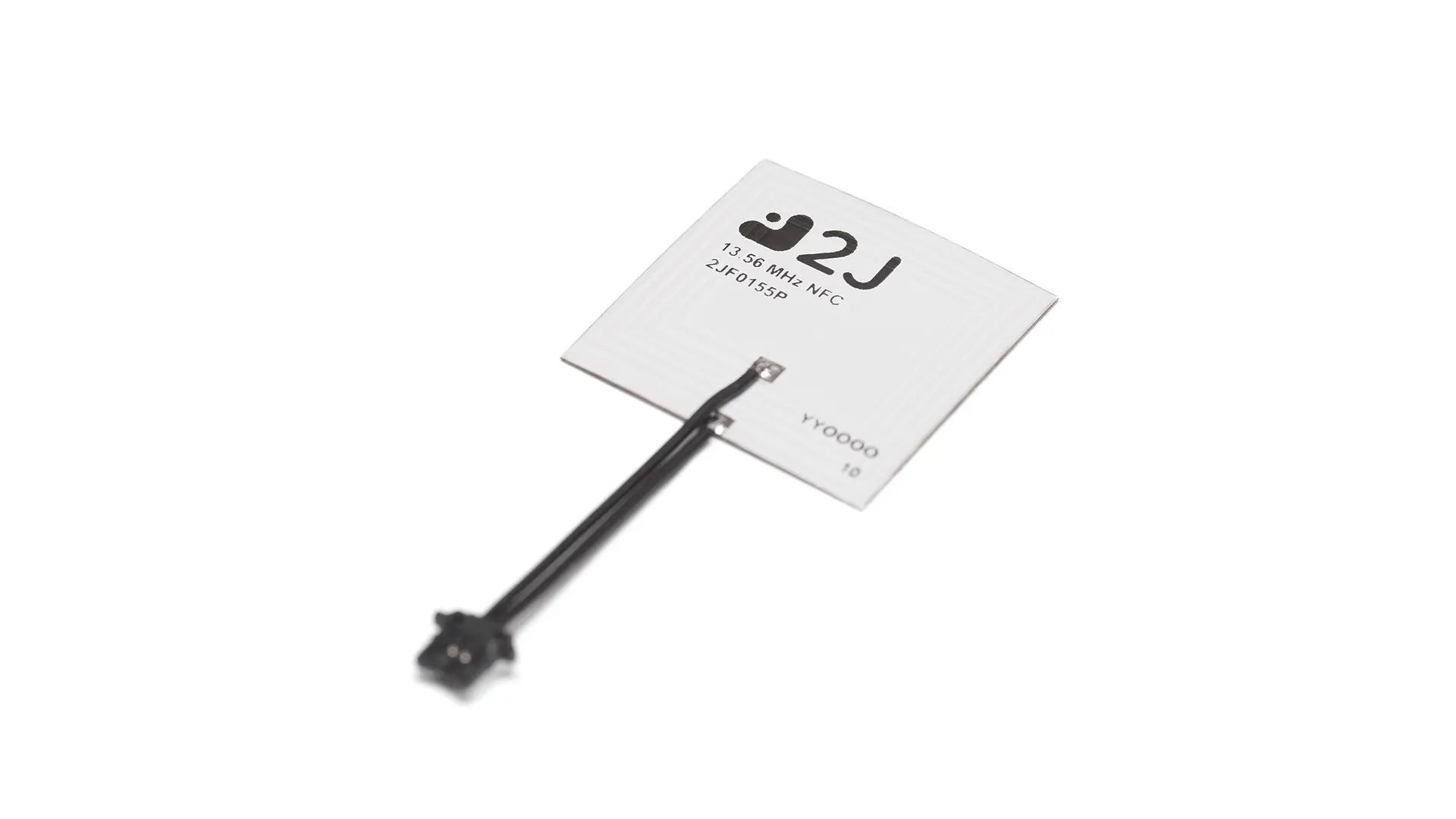

2JF0155P
NFC Flexible ultra-thin PCB Adhesive Antenna
Connections (1)
1×
NFC - 13.56 MHz
| Mounting | Adhesive Mount Flexible |
|---|---|
| Dimensions (mm) | 25.0 × 25.0 × 0.2 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
NFC - 13.56 MHz
| Standards | NFC |
|---|---|
| Frequency | 13.56 |
| Reading Distance (mm) | 25 |
| Self-Resonance Frequency | 100 |
| Inductance (μH) | ~1.0 |
| Resistance (Ohm) | ~1.6 |
| Q Factor | 45 |
| Impedance (Ohm) | 50 / 75 |
| Matched Q Value | 5-25 |
Antenna Description
Key Features
Small Form Factor
Ground Plane Independent
Self-Adhesive
Customizable Cable and Connector
Flexi Internal Antenna
NFC Antenna
Applications
Security & Safety
Short-Range Connectivity
Internal Antenna Solutions
