2JE06a

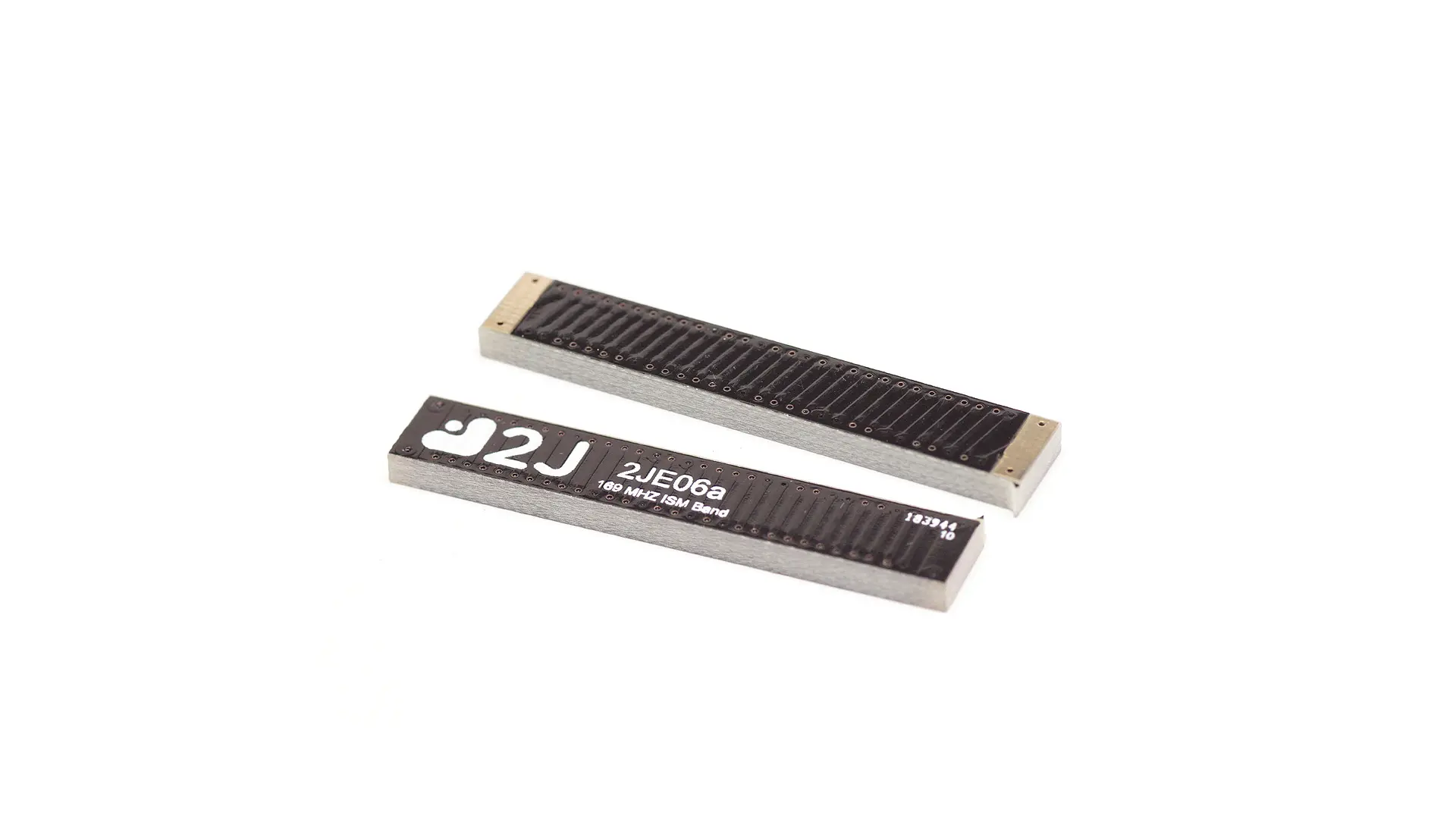

169MHz ISM-ERMES Compact, High-Frequency Surface Mount Fiberglass Antenna
Connections (1)
1×
ERMES / VHF - 169 MHz
| Mounting | Surface Mount Fiberglass |
|---|---|
| Dimensions (mm) | 40 × 7 × 2.4 |
| Operating temperature | -40 °C to +105 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
ERMES / VHF - 169 MHz
| Standards | ERMES, ISM, VHF |
|---|---|
| Frequency | 169.4-169.9 |
| VSWR | ~1.2:1 |
| Peak Gain (dBi) | ~-6.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 10 |
Antenna Description
Key Features
Ground Plane Dependent
SMT Brick Embedded Antenna
Fiberglass Material
Compact Size
Easy to Integrate
-6.0 dBi ERMES Peak Gain
Applications
Defense & Public Safety
Embedded Antenna Solutions
