2JC237G

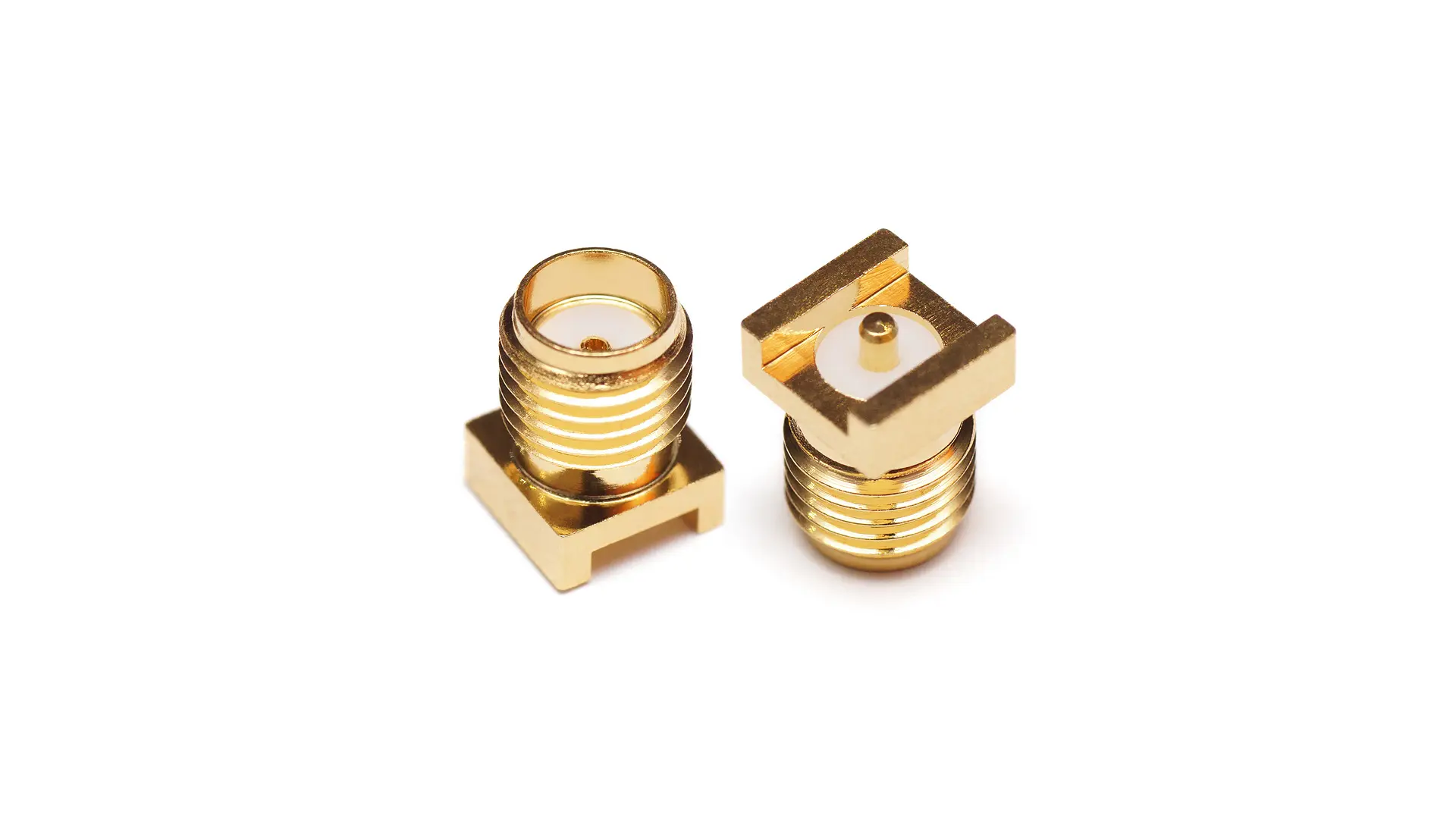

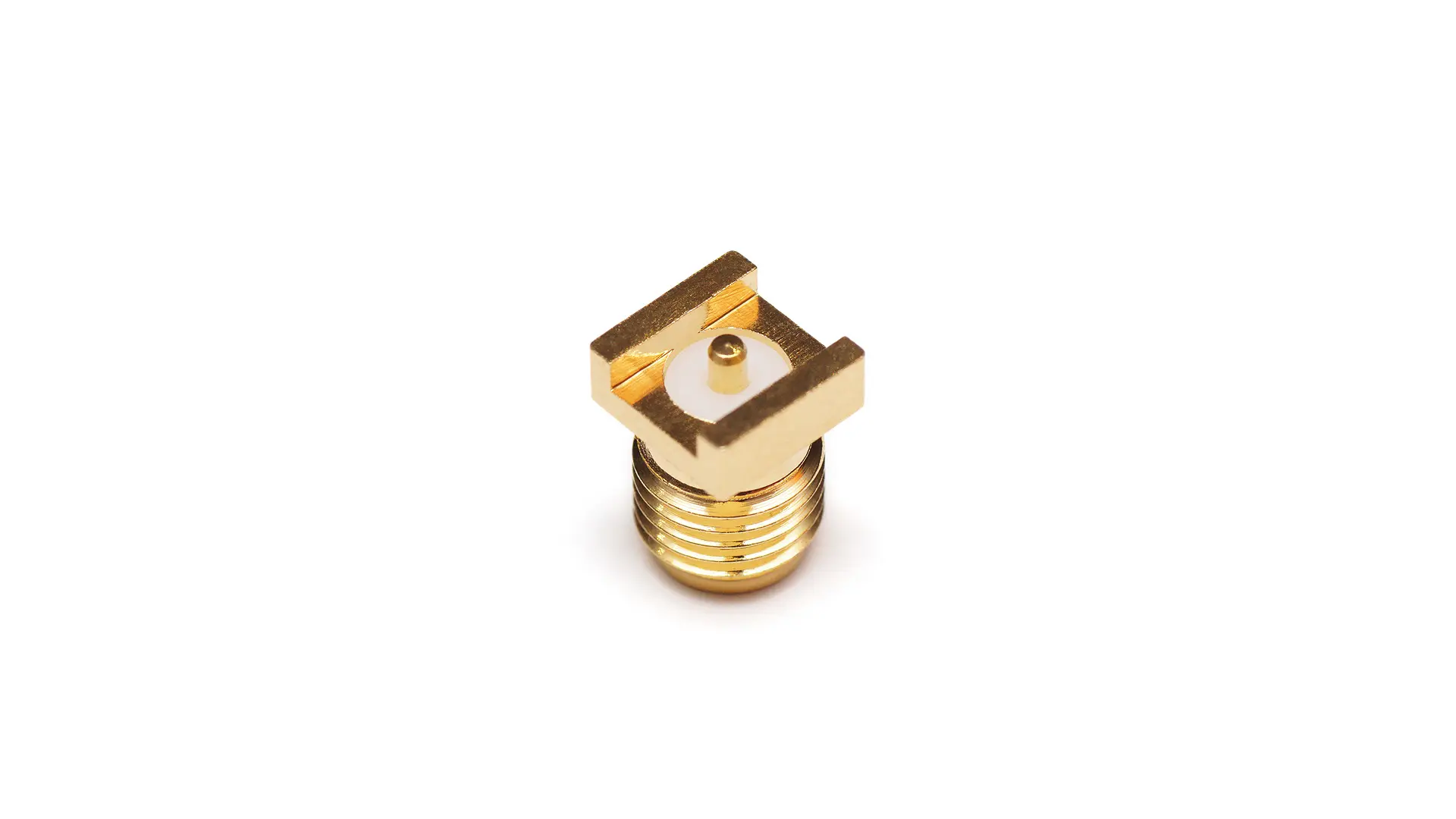

SMA-Female Surface Mount Connector
| Mounting | Screw Mount Module |
|---|---|
| Connector type | SMA |
| Connector Gender | Female (Jack) |
| Connector polarity | Standard polarity |
| Dimensions (mm) | 6.35 × 6.35 × 8.9 |
| Body Material | Brass |
| Body Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Insulator Material | Teflon |
| Operating temperature | -40 °C to +85 °C |
| Storage Temperature | -40 °C to +85 °C |
| Substance Compliance | RoHS |
| Standard colors |
Gold
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Connector Description
Key Features
SMA-Female
Surface Mount
Standard polarity
Gold Plated
Applications
Radio Frequency Connector
