2J3724M - for EU LTE only

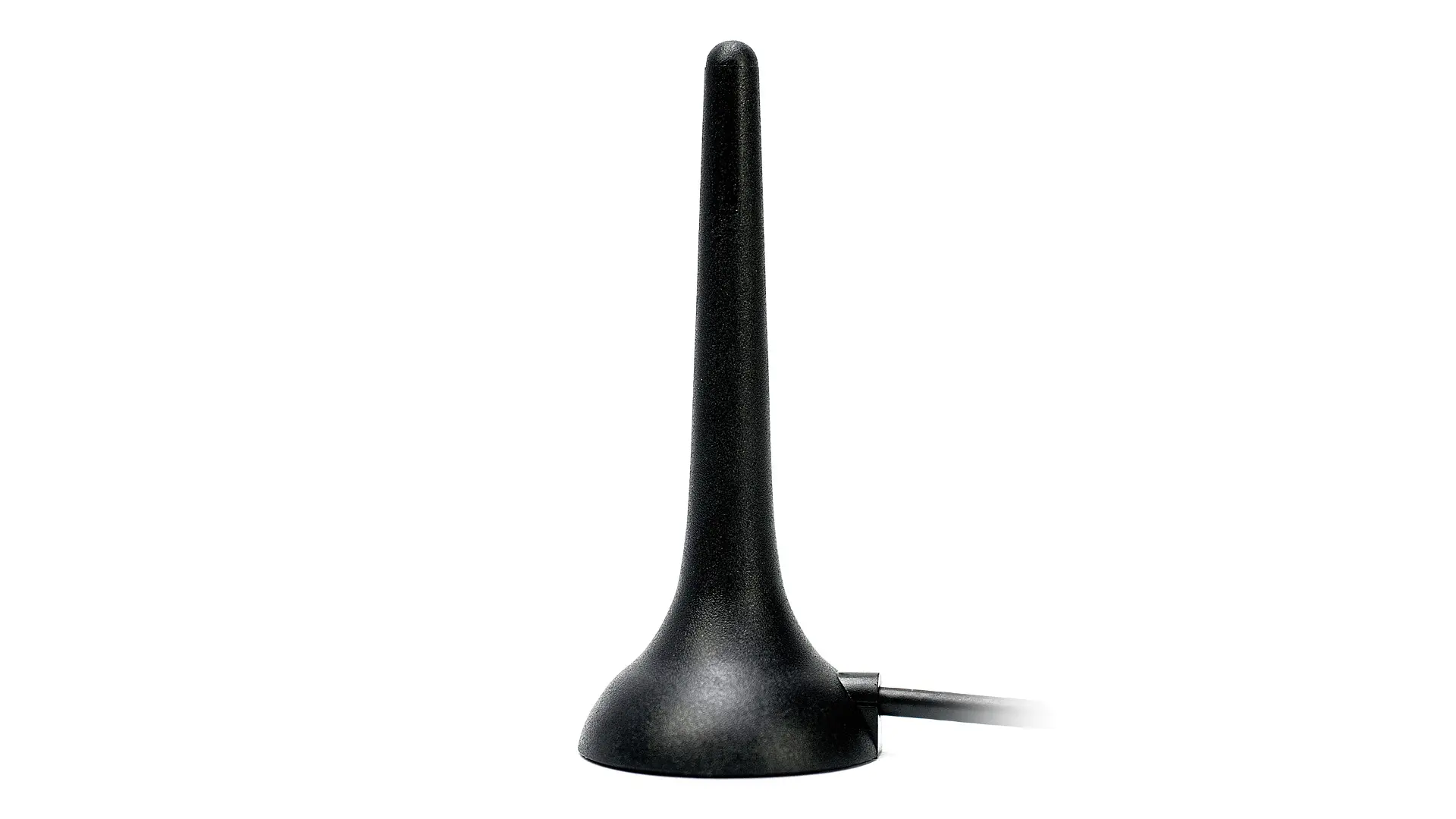

Cellular 4G LTE Low Profile Magnetic Mount Antenna
Connections (1)
1×
4G LTE / Cellular / LPWA / NB-IoT
| Mounting | Magnetic Mount |
|---|---|
| Dimensions (mm) | 30.9 × 71.5 |
| Operating temperature | -40 °C to +85 °C |
| Note | This antenna is suitable only for European LTE frequency bands - Specification subject to change |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
4G LTE / Cellular / LPWA / NB-IoT
| Standards | 2G,3G and 4G |
|---|---|
| Frequency | 791-960, 1710-2170, 2500-2700 |
| VSWR | ~2.0:1, ~2.8:1, ~3.9:1 |
| Efficiency (%) | ~59.6, ~40.7, ~20.8 |
| Peak Gain (dBi) | ~2.1, ~0.5, ~-1.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Small Form Factor
Ground Plane Dependent
Wide band Antenna
Customizable Cable and Connector
2.1 dBi 4G LTE Peak Gain
791-2700 MHz 4GLTE Bands
suitable for EU LTE only
Applications
Cellular & Wireless
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Energy & Utilities
Broadcasting & Media
Consumer & Entertainment
Antenna band list
| Parameters | 4G LTE Antenna | ||
| Frequency (MHz) | 791-960 | 1710-2170 | 2500-2700 |
| Band (MHz) | 850, 900 | 1700, 1800, 1900, 2000, 2100 | 2500, 2600 |
| 4GLTE Bands | B5, B6, B8, B18, B19, B20, B26, B27, |
B1, B2, B3, B4, B9, B10, B25, B33, B34, B35, B36, B37, B39, B65, B66, B70 |
B7, B38, B41, B69 |
| 3GCELL Bands | B5, B6, B8, B19, B20, B26 |
B1, B2, B3, B4, B9, B10, B25, B33, B34, B35, B36, B37, B39 |
B7, B38 |
| 2GCELL Bands | 810T, 850, 900P, 900E, 900R |
1800DCS, 1900PCS | |
| CDMACELL Bands | BC0, BC2, BC3, BC9, BC10, BC12, |
BC1, BC4, BC6, BC8, BC14, BC15 |
BC13, BC16 |
